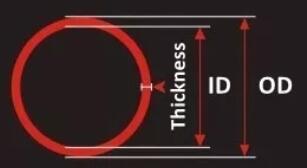

ID :Inner DiameterOD:Outer Diameter
| Color |  |
 |
 |
 |
 |
 |
 |
|||||
| Black | Red | Yellow | Green | Blue | White | Raw Color | ||||||
| Material | PA12 PA6 | |||||||||||
| Size(mm) | 4*0.75 | 5*1 | 6*1 | 8*1 | 10*1 | 10*1.25 | 12*1 | 12*1.5 | 14*1.5 | 16*1.5 | 16*2 | 18*1.5 |
| Length | 100M 200M |
100M 200M |
100M 200M |
100M | 100M | 100M | 100M | 100M | 50M | 50M | 50M | 50M |
| Gram/M | 8g土1 | 14g土1 | 17g土2 | 24g土2 | 31g土2 | 38g土2 | 38g土2 | 54g土3 | 65g土3 | 75g土3 | 97g土3 | 86g士3 |
| Description |  Unit ; mm ID :Inner Diameter OD:Outer Diameter |
|||||||||||
| OD (mm) | 4 | 5 | 6 | 8 | 10 | 10 | 12 | 12 | 14 | 16 | 16 | 18 |
| ID (mm) | 2.5 | 3 | 4 | 6 | 8 | 7.5 | 10 | 9 | 11 | 13 | 12 | 15 |
| Thickness( mm) | 0.75 | 1 | 1 | 1 | 1 | 1.25 | 1 | 1.5 | 1.5 | 1.5 | 2 | 1.5 |
| W. T | -30°C→120°C | |||||||||||
| W. P | Working Pressure 5.0Mpa at Normal Temprature 20°C | |||||||||||
AlwayTec is Fuel nylon tube Manufacturers which specializing in the research, development, production and sales of automotive fuel quick connectors and assemblies. Now we have more than 60 types of fittings and more than 150 customized fuel assemblies. We will continue to develop new fuel joints and assemblies, and continue to increase our products in the next few years, in order to meet the needs of customers to the greatest extent. Our corporate tenet: "customer demand-oriented". Our products are good and stable in quality and enjoy a good reputation in the market. We have established a stable customer base, mainly exported to Southeast Asia, America, Europe and other countries and regions. We also OEM/ODM. Welcome to visit our Fuel nylon tube factory in China. Customized.
Now we have more than 60 types connector and 150 types fule hose assemly as custommade. With steady long-term demand growth.
With "constantly improving our quality to satisfy customer's demands" as the enterprise eternal goal.
The company has formed a complete technical system in the production and development of fuel pipeline quick couplings and fuel pipeline assembly.
Products are exported to many countries, providing customers with "one-stop" sales services.
When you partner with Alwaytec, you work with an experienced, enthusiastic, and creative team.
We are committed to providing our customers with quality products and services to suit your business, big or small.
